Atom42 FC

Usable Nozzle Diameter Range
12 mm – 22 mm
Water Consumption Range
11 m3/h – 51 m3/h
Shooting Radius Range
24meter – 45meter
Body Angle
28° - 22°

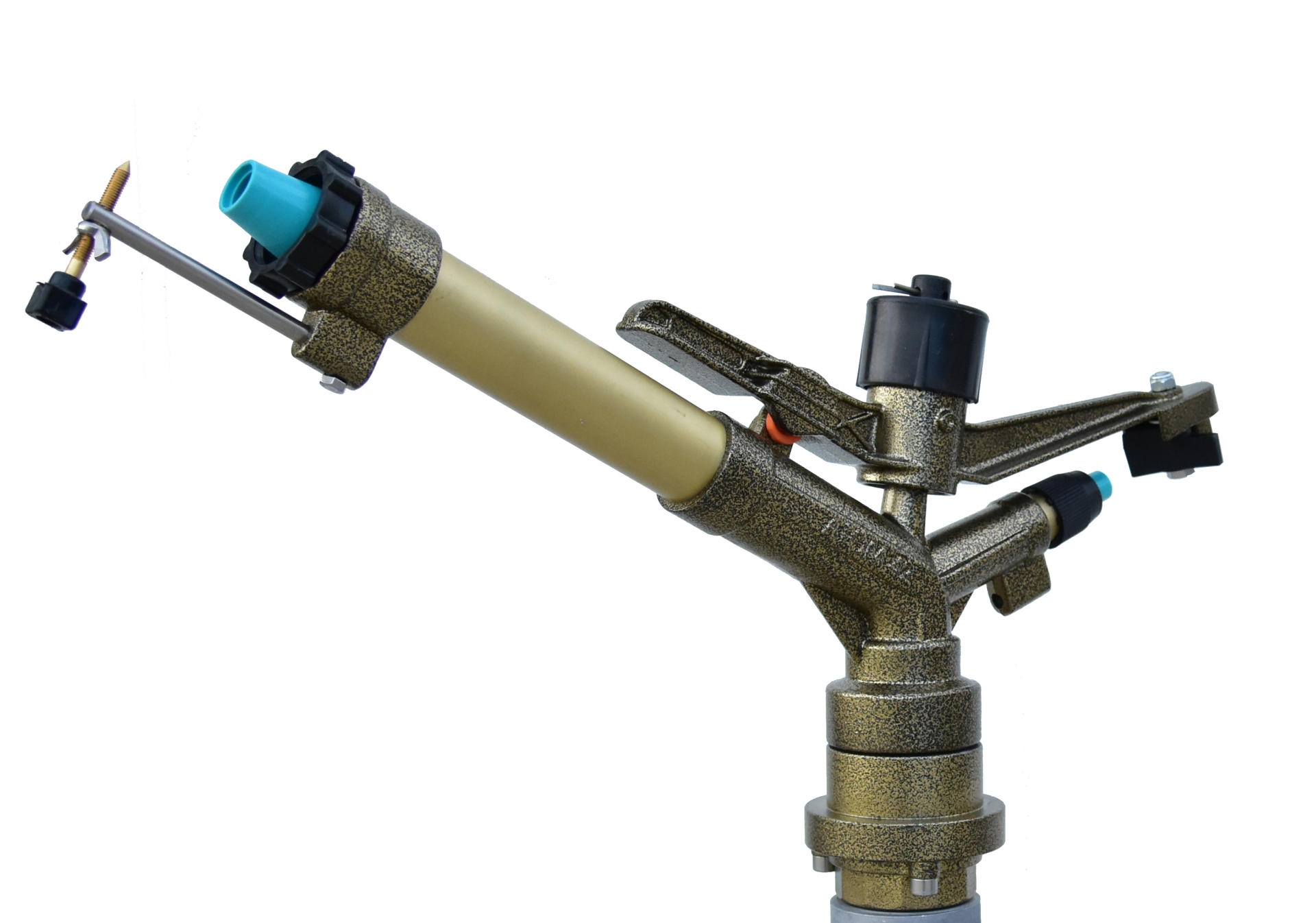

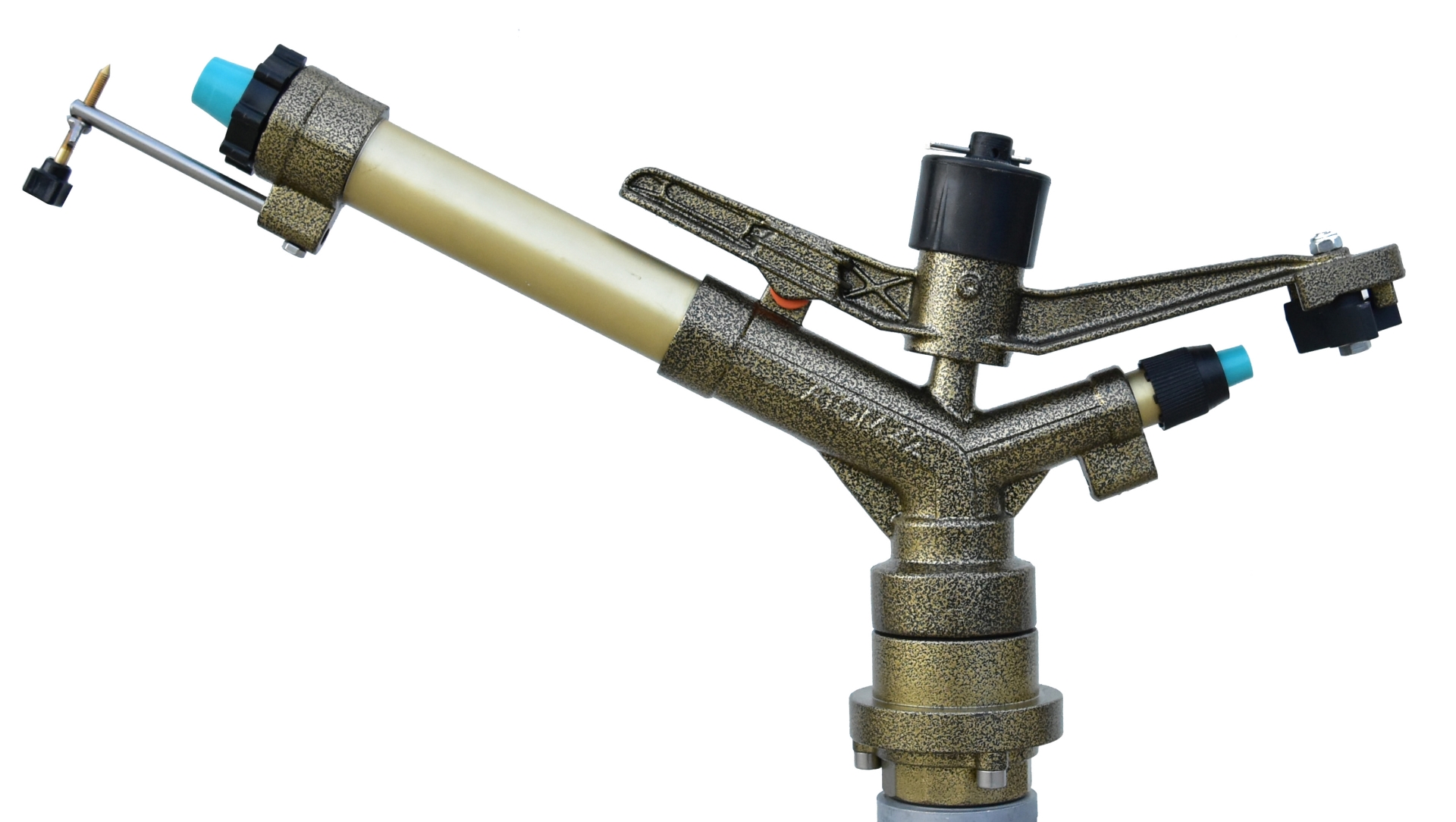

An impact sprinkler that rotates in a full circle. It has double-hole outlet and rotating nozzle is replaceable. It is used for full turn only. It operates at medium and high pressure (2 – 6 bar). With adjustable water breaker, it allows uniform irrigation. And thanks to body angle of 28 degrees, it is less affected by wind compared to its equivalents of 30 and 33 degrees. Main body is aluminium with rotating mechanism of lower body made of aluminium and brass. Latent type sealing system, it serves with sandy water without any problem.

Nozzle Diameter Pressure Jet Length Capacity Irrigated Area Rainfall Per Hour
mm inch kg/cm2 lbs/inch m feet I/min m3/h G.P.M m2 acre mm/h
12 0,47 2 29 24 79 183,3 11 48 1809 0,45 6,1
12 0,47 3 44 29 95 225 13,5 59 2641 0,65 5,1
12 0,47 4 56 31 102 258,3 15,5 68 3018 0,75 5,1
14 0,55 3 56 30 98 283,3 17 75 2826 0,70 6,0
14 0,55 4 70 31 102 325 19,5 86 3018 0,75 6,5
14 0,55 5 85 35 115 366,7 22 97 3847 0,95 0,95
16 0,62 3 56 32 105 350 21 92 3215 0,79 6,5
16 0,62 4 70 35 115 400 24 106 3847 0,95 6,2
16 0,62 5 85 38 125 450 27 119 4534 1,12 6,0
18 0,70 3 85 33 108 433,3 26 114 3419 0,84 7,6
18 0,70 4 85 36 118 508,3 30,5 134 4069 1,01 7,5
18 0,70 5 85 40 131 566,7 34 150 5024 1,24 6,8
20 0,78 3 85 35 115 500 30 132 3847 0,95 7,8
20 0,78 4 85 39 128 608,3 36,5 161 4776 1,18 7,6
20 0,78 5 85 43 141 666,7 40 176 5806 1,43 6,9
22 0,86 4 85 40 131 683,3 41 181 5024 1,24 8,2
22 0,86 5 85 44 144 766,7 46 203 6079 1,50 7,6
